2000mAh LiPo Cell

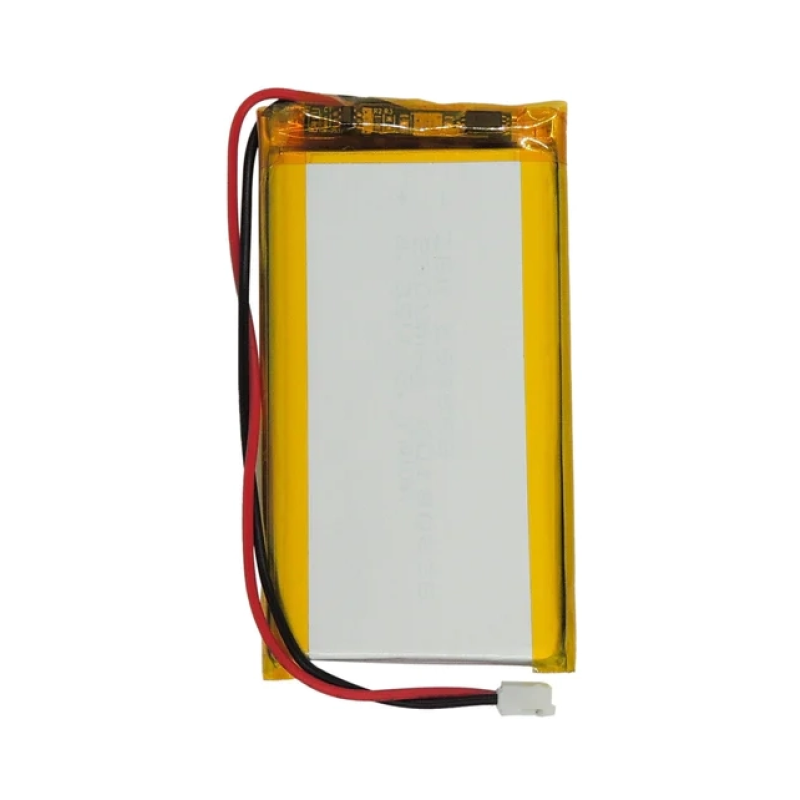

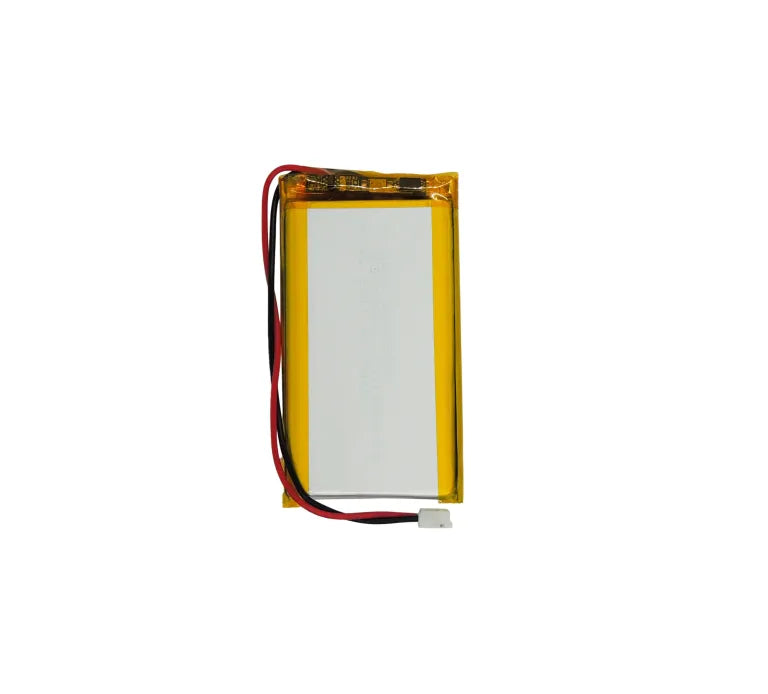

The cell offered is a 3.7V, 2000mAh cell suitable for use with any of the battery powered boards sold on the site. The cell include a safety circuit that protects the cell from overcharge, short circuits and excessive discharge. The fully charged voltage is 4.2V and the cutoff voltage for discharge is 3.0V.
The cell dimensions are 68.5mm long, 37mm wide, 6.5mm thick. The wires are 85mm long. The manufacturer rates the cell at 2200mAh.
The cell dimensions are 2.66″ long, 1.46″ wide, 0.255″ thick. The wires are 3.3″ long.
The connector is a JST-2R to match the boards sold on this site.
